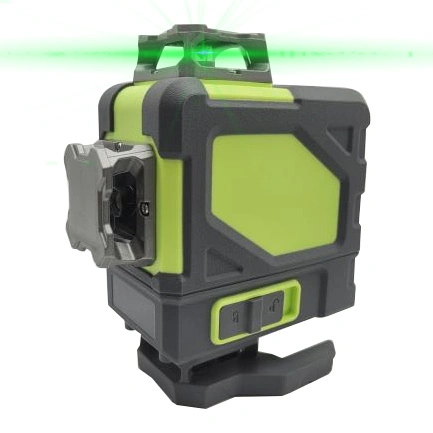

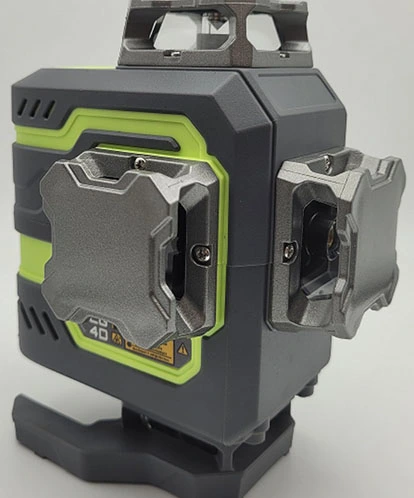

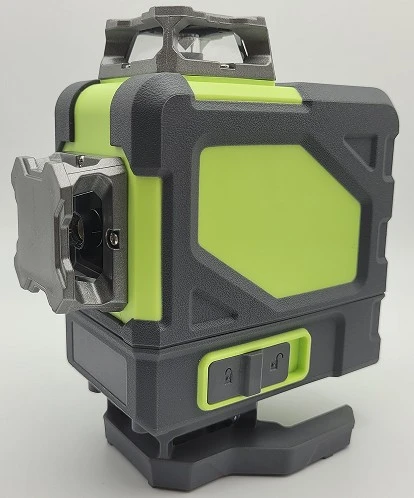

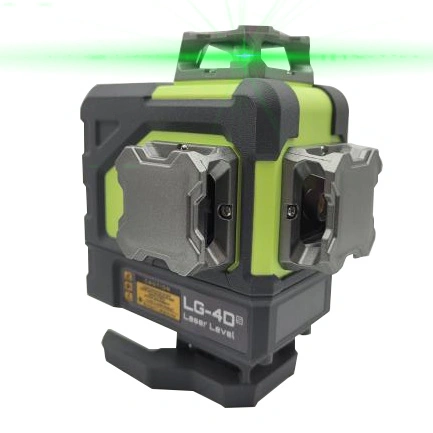

Green 16 lines Laser Level

Model:NK04DLP360/LP04DLP360
The green 16 lines laser level not only improves the accuracy and efficiency of measurement, but also greatly improves the performance of traditional red laser in bright environments through high-brightness green laser technology, enabling it to provide stable laser projection effects in various complex working environments.

As a supplier, Laizap Opto-electros ' core advantages lie in its excellent product quality and comprehensive after-sales service system. The green 16 line laser level adopts the most advanced laser emission technology and a highly sensitive automatic leveling system, which can automatically perform precise leveling on the construction site, avoiding the inconvenience caused by manual errors. This device has the feature of simultaneously projecting 16 laser lines, which can achieve 360 degree measurement in all directions, providing clearer and more intuitive laser guidance, greatly improving construction accuracy and work efficiency. Especially in large-scale construction and complex space decoration, the green 16 line laser level can help workers quickly locate various measurement points, ensuring construction accuracy and quality.

Laizap Opto-electros is an innovative enterprise focusing on high-precision laser measurement equipment, dedicated to providing efficient and accurate laser products for various construction, decoration, measurement and other industries. As a professional supplier, Razer Aipu Optoelectronics has continuously broken through technical bottlenecks and launched a number of market-competitive laser measurement instruments.

Technical Specification

Model NK04DLP360(4d) LP04DLP360(4d)
Picture Green 16 Lines Laser Level Green 16 Lines Laser Level
Light Source-Green 505nm - 550nm 505nm - 550nm
LD power 30mW 30mw
Accuracy ± 3mm / 10m ± 3mm / 10m
Laser class Level 2 (output power<1mW) Class 2 Level 2 (output power<1mW) Class 2
Laser beam two 360° horizontal line + two 360° vertical lines two 360° horizontal line + two 360° vertical lines
Self-leveling range 4° ± 1° 4° ± 1°
Working distance 100ft/30m, 200ft/60m with detector (green beam) 100ft/30m, 200ft/60m with detector (green beam)
Operating time 12H/first gear; 24H/second gear. 6H/first gear; 12H/second gear.
Power source 7.4V-4000mah lithium battery ( inside battery) 7.4V-2600mah lithium battery pack
USB charging Yes Yes
Mount size 1/4"-20 mounting thread 1/4"-20 and 5/8"-20 mounting thread
IP rating IP54 IP54
Function Self-leveling mode, manual mode, and pulse mode. Self-leveling mode, manual mode, and pulse mode.
Working temperature -10℃ ~ 50℃ -10℃ ~ 50℃
Storage temperature -20 ~ 70℃ -20 ~ 70℃
Packing - Carry bag Kit included:
1. NK04D laser level
2. L bracket
3. target plate
4. Type-C Power cable
5. instruction book
6. bag
7. color box
Kit included:
1. LP04D laser level
2. multiple bracket
3. Type-C Power cable
4. 2X battery
5. instruction book
6. bag
7. color box
Packing - Plastic case Kit included:
1. NK04D laser level
2. multiple bracket
3. target plate
4. Green glasses
5. Type-C Power cable
6. Power Adaptor
7. instruction book
8. plastic case
9. color sleeve
Kit included:
1. LP04D laser level
2. multiple bracket
3. back clip
4. target plate
5. Green glasses
6. 2X battery
7. Type-C Power cable
8. Power Adaptor
9. instruction book
10. plastic case
11. color sleeve
Summary 4D Laser Level Self Leveling 4x360°,
4DRed Beam Cross Line Laser for Construction and Picture Hanging,
4 x 360 Red Beam Three-Plane Leveling and Alignment Laser Tool,
Rechargeable Batteries ,
Magnetic Liftable Stand Included,
4D Laser Level Self Leveling 4x360°,
4D Red Beam Cross Line Laser for Construction and Picture Hanging,
4 x 360 Red Beam Three-Plane Leveling and Alignment Laser Tool,
Rechargeable Batteries ,
Magnetic Liftable Stand Included,

Green 16 Lines Laser LevelGreen 16 Lines Laser LevelGreen 16 Lines Laser LevelGreen 16 Lines Laser Level

Laizap Opto-electros not only continuously pursues excellence in technological innovation, but also attaches great importance to the practical needs of customer experience and product application. As a supplier, Laizap Opto-electros strictly controls the product design and manufacturing process in accordance with international quality standards to ensure that every green 16 line laser level undergoes rigorous quality testing. In addition,Laizap Opto-electros also provides professional technical training and after-sales support to customers, helping them fully utilize the equipment's maximum efficiency during use. The company adheres to the service philosophy of "quality first, customer first", ensuring that every customer can have a satisfactory purchasing experience and usage effect. Whether on construction sites or in precision measurement, our laser equipment can help users achieve efficient and accurate work goals, becoming a trusted partner in the industry.
