As a responsible supplier, we are aware of the differences in demand for red 16 lines laser level instruments across various industries. Therefore, Laizap Opto-electros implements customized services, adjusts product functions and specifications according to customers' unique needs, and ensures that each customer receives an exclusive adaptation solution. We can meet any specific length of laser lines, enhanced durability design, or other personalized requirements.
We are extremely eager to work together with customers from all over the world to explore the potential of laser technology in various fields. If you are interested in our red 16 lines laser level or other product lines, or would like to discuss exclusive customization solutions, please feel free to contact us at any time. Laizap Opto-electros is committed to providing top-notch products and services to global customers, and we firmly believe that our collaboration will be pleasant and effective.

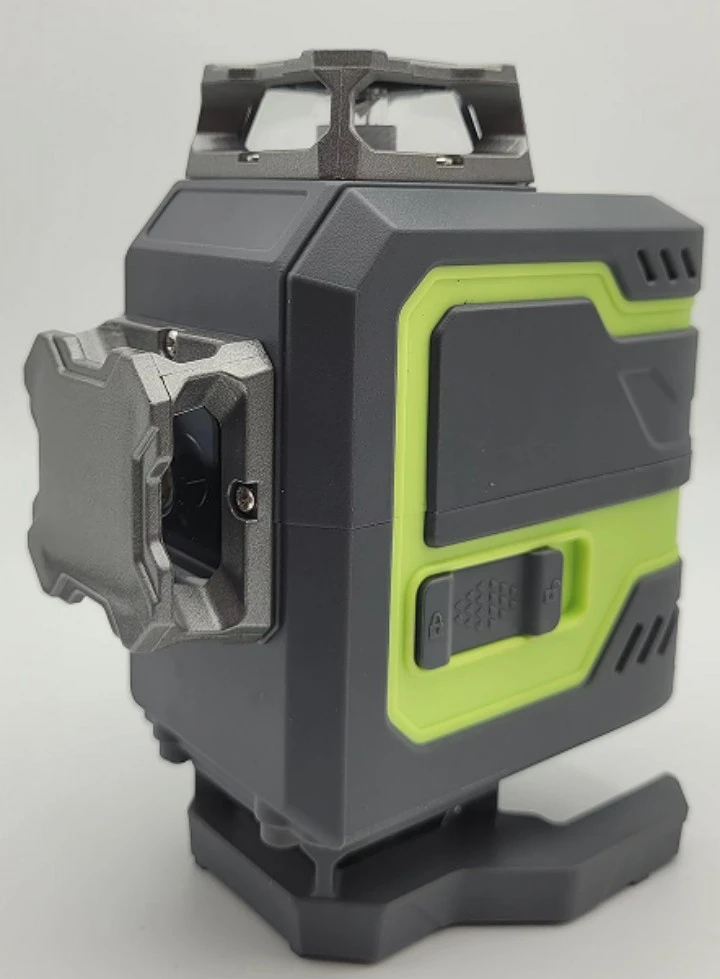

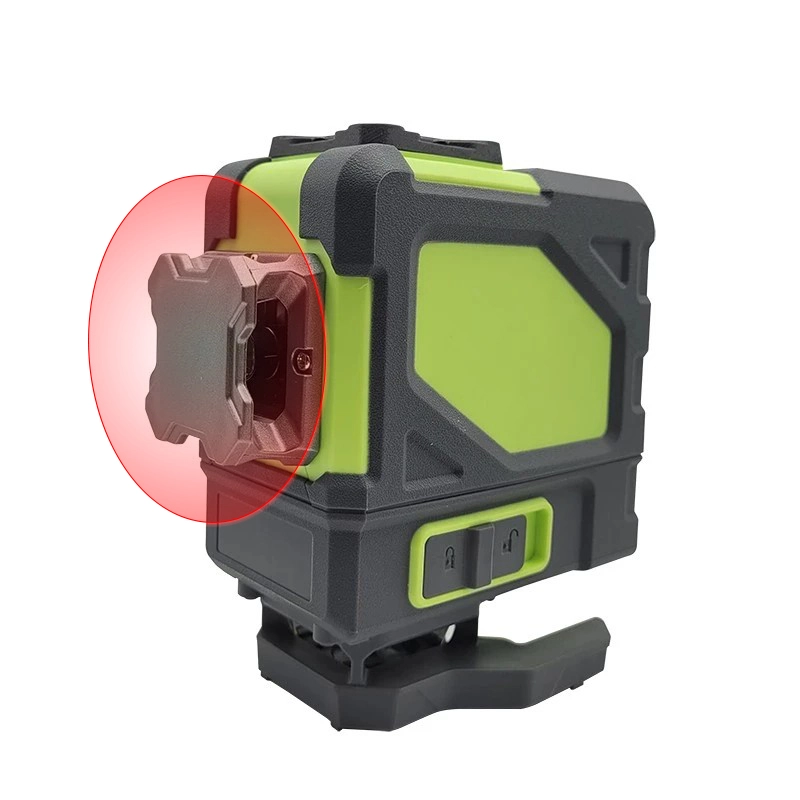

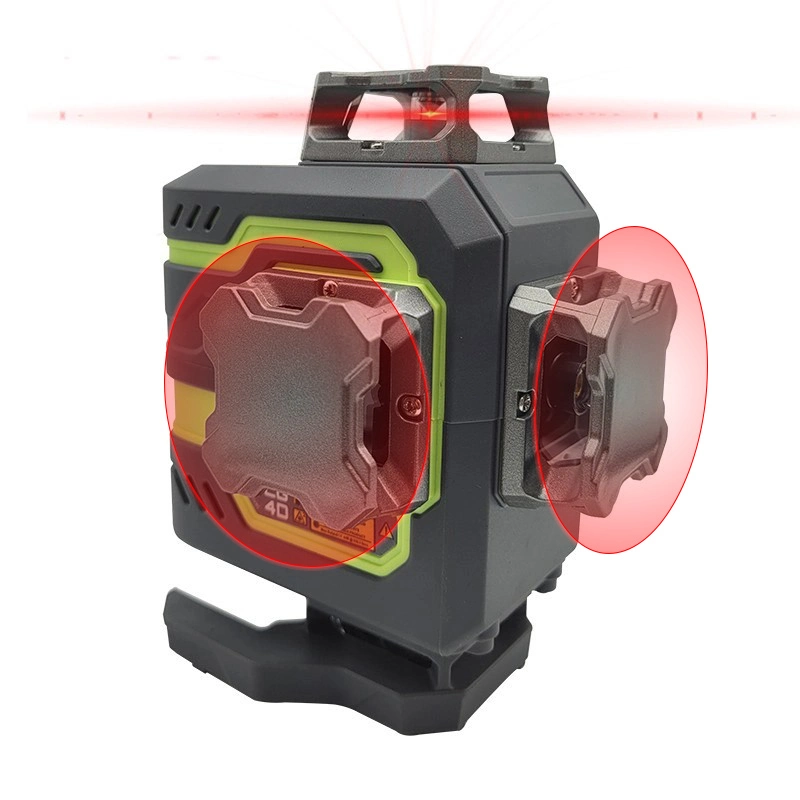

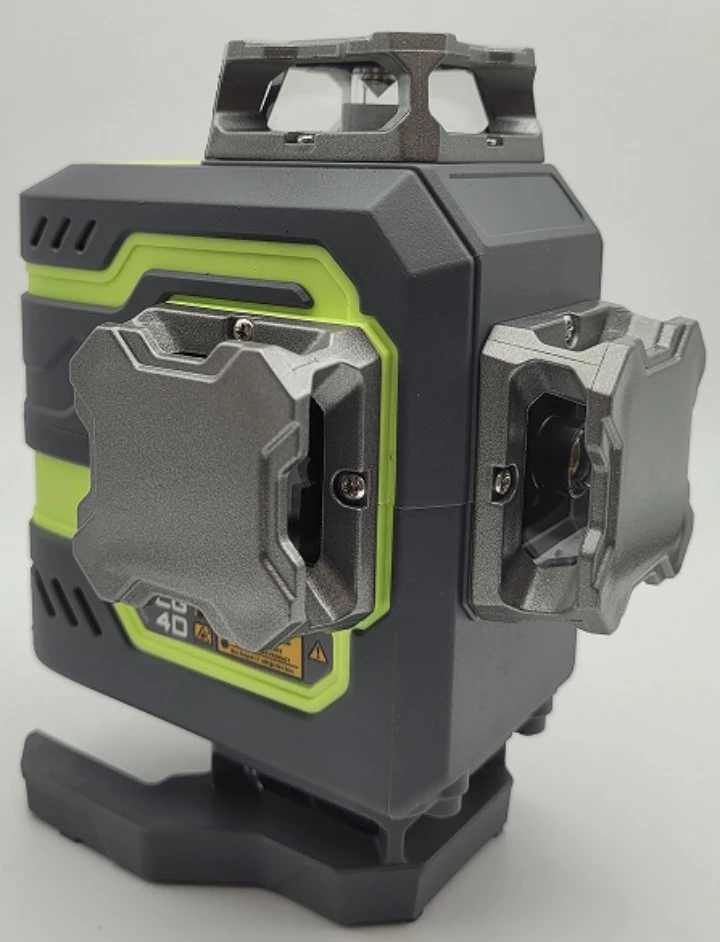

| Model | NK04DLP360（4d） | LP04DLP360（4d） |
| Picture |
|
|
| Light Source-red | 630nm - 650nm | 630nm - 650nm |
| LD power | 30mW | 30mw |
| Accuracy | ± 3mm / 10m | ± 3mm / 10m |
| Laser class | Level 2 (output power<1mW) Class 2 | Level 2 (output power<1mW) Class 2 |
| Laser beam | two 360° horizontal line + two 360° vertical lines | two 360° horizontal line + two 360° vertical lines |
| Self-leveling range | 4° ± 1° | 4° ± 1° |
| Working distance | 100ft/30m, 200ft/60m with detector (red beam) | 100ft/30m, 200ft/60m with detector (red beam) |
| Operating time | 12H/first gear; 24H/second gear. | 6H/first gear; 12H/second gear. |
| Power source | 7.4V-4000mah lithium battery ( inside battery) | 7.4V-2600mah lithium battery pack |
| USB charging | Yes | Yes |
| Mount size | 1/4"-20 mounting thread | 1/4"-20 and 5/8"-20 mounting thread |
| IP rating | IP54 | IP54 |
| Function | Self-leveling mode, manual mode, and pulse mode. | Self-leveling mode, manual mode, and pulse mode. |
| Working temperature | -10℃ ~ 50℃ | -10℃ ~ 50℃ |
| Storage temperature | -20 ~ 70℃ | -20 ~ 70℃ |
| Packing - Carry bag |
Kit included: 1. NK04D laser level 2. L bracket 3. target plate 4. Type-C Power cable 5. instruction book 6. bag 7. color box |
Kit included: 1. LP04D laser level 2. multiple bracket 3. Type-C Power cable 4. 2X battery 5. instruction book 6. bag 7. color box |
| Packing - Plastic case |
Kit included: 1. NK04D laser level 2. multiple bracket 3. target plate 4. red glasses 5. Type-C Power cable 6. Power Adaptor 7. instruction book 8. plastic case 9. color sleeve |
Kit included: 1. LP04D laser level 2. multiple bracket 3. back clip 4. target plate 5. red glasses 6. 2X battery 7. Type-C Power cable 8. Power Adaptor 9. instruction book 10. plastic case 11. color sleeve |
|
Key Points Summary |
4D Laser Level Self Leveling 4x360°, 4D Red Beam Cross Line Laser for Construction and Picture Hanging, 4 x 360 Red Beam Three-Plane Leveling and Alignment Laser Tool, Rechargeable Batteries , Magnetic Liftable Stand Included, |
4D Laser Level Self Leveling 4x360°, 4D Red Beam Cross Line Laser for Construction and Picture Hanging, 4 x 360 Red Beam Three-Plane Leveling and Alignment Laser Tool, Rechargeable Batteries , Magnetic Liftable Stand Included, |
