| Model | NK04DLP360（4d） | LP04DLP360（4d） |

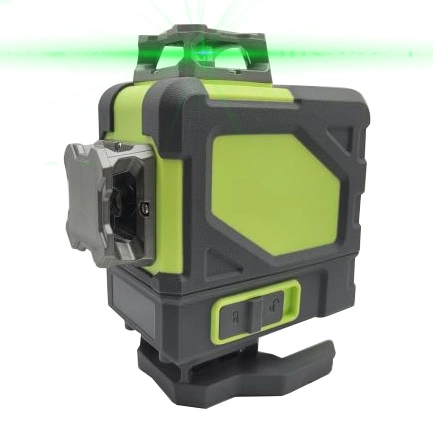

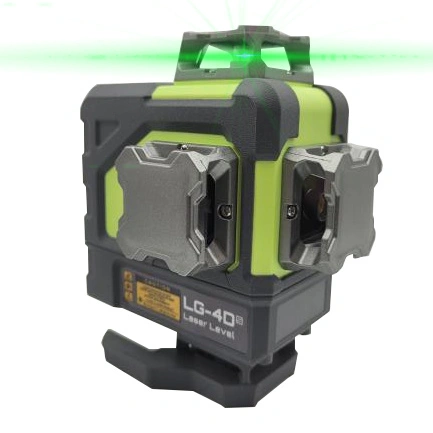

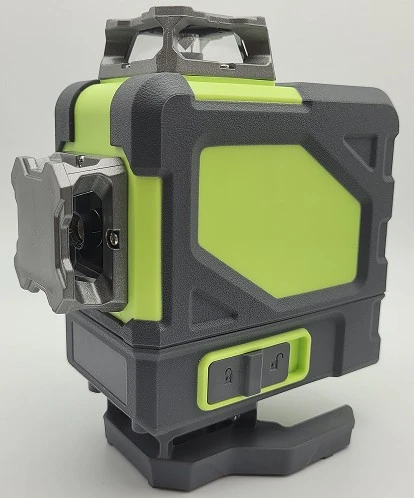

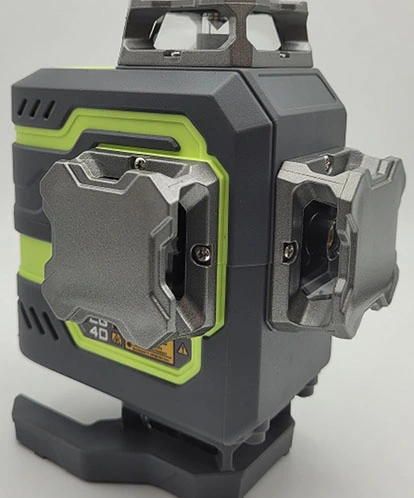

| Picture |
|
|
| Light Source-Green | 505nm - 550nm | 505nm - 550nm |
| LD power | 30mW | 30mw |
| Accuracy | ± 3mm / 10m | ± 3mm / 10m |
| Laser class | Level 2 (output power<1mW) Class 2 | Level 2 (output power<1mW) Class 2 |
| Laser beam | two 360° horizontal line + two 360° vertical lines | two 360° horizontal line + two 360° vertical lines |
| Self-leveling range | 4° ± 1° | 4° ± 1° |
| Working distance | 100ft/30m, 200ft/60m with detector (green beam) | 100ft/30m, 200ft/60m with detector (green beam) |
| Operating time | 12H/first gear; 24H/second gear. | 6H/first gear; 12H/second gear. |
| Power source | 7.4V-4000mah lithium battery ( inside battery) | 7.4V-2600mah lithium battery pack |
| USB charging | Yes | Yes |
| Mount size | 1/4"-20 mounting thread | 1/4"-20 and 5/8"-20 mounting thread |
| IP rating | IP54 | IP54 |
| Function | Self-leveling mode, manual mode, and pulse mode. | Self-leveling mode, manual mode, and pulse mode. |
| Working temperature | -10℃ ~ 50℃ | -10℃ ~ 50℃ |
| Storage temperature | -20 ~ 70℃ | -20 ~ 70℃ |
| Packing - Carry bag |
Kit included: 1. NK04D laser level 2. L bracket 3. target plate 4. Type-C Power cable 5. instruction book 6. bag 7. color box |
Kit included: 1. LP04D laser level 2. multiple bracket 3. Type-C Power cable 4. 2X battery 5. instruction book 6. bag 7. color box |
| Packing - Plastic case |
Kit included: 1. NK04D laser level 2. multiple bracket 3. target plate 4. Green glasses 5. Type-C Power cable 6. Power Adaptor 7. instruction book 8. plastic case 9. color sleeve |
Kit included: 1. LP04D laser level 2. multiple bracket 3. back clip 4. target plate 5. Green glasses 6. 2X battery 7. Type-C Power cable 8. Power Adaptor 9. instruction book 10. plastic case 11. color sleeve |
